VAC 150-1200 – High-performance Single-Pot processors for production
Mixing. Granulating. Drying. On a production scale.
Your main benefits
- Gentle drag gas addition
- High drying speed due to wall wiping
- Suitable also for very adhesive products
- Two heating zones (lid and container)
- Industrial PC, 21CFR Part 11 compliant, with remote maintenance
- Highly efficient mould and container design made by DIOSNA
In the DIOSNA VAC Single-Pot processors, your wet granules are produced and then dried under vacuum. During drying, stripping gas (compressed air or nitrogen) can be added and finely distributed. The mixing tool is equipped with a scraper that runs close to the wall, which means that even products that tend to form deposits on the heated wall can be dried quickly and easily.
![[Translate to English:]](/fileadmin/media/1_3_1_2_3_Single-Pot/diosna-granulieren-trocknen-vakuum-vac_150-01.jpg "[Translate to English:]")
![[Translate to English:]](/fileadmin/media/1_3_1_2_3_Single-Pot/diosna-granulieren-trocknen-vakuum-vac-mischwerkzeug-02.jpg "[Translate to English:]")
![[Translate to English:]](/fileadmin/media/1_3_1_2_3_Single-Pot/diosna-granulieren-trocknen-vakuum-vac-mischwerkzeug-03.jpg "[Translate to English:]")
![[Translate to English:]](/fileadmin/media/1_3_1_2_3_Single-Pot/diosna-granulieren-trocknen-schleppgasduese-04.jpg "[Translate to English:]")

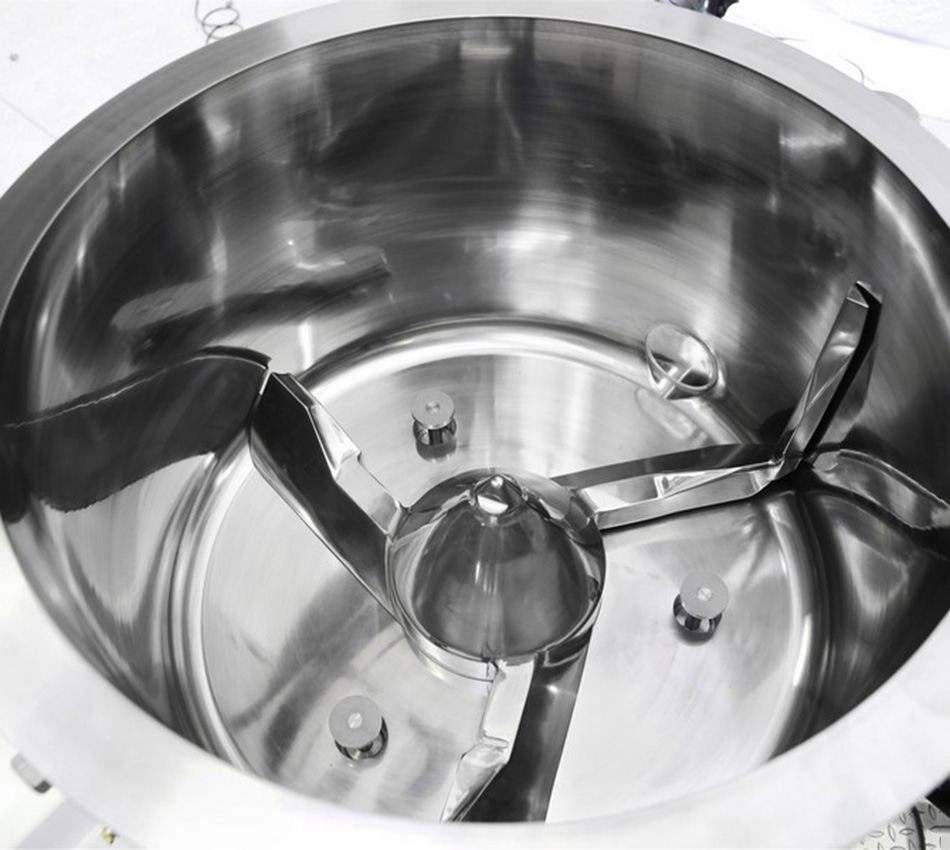

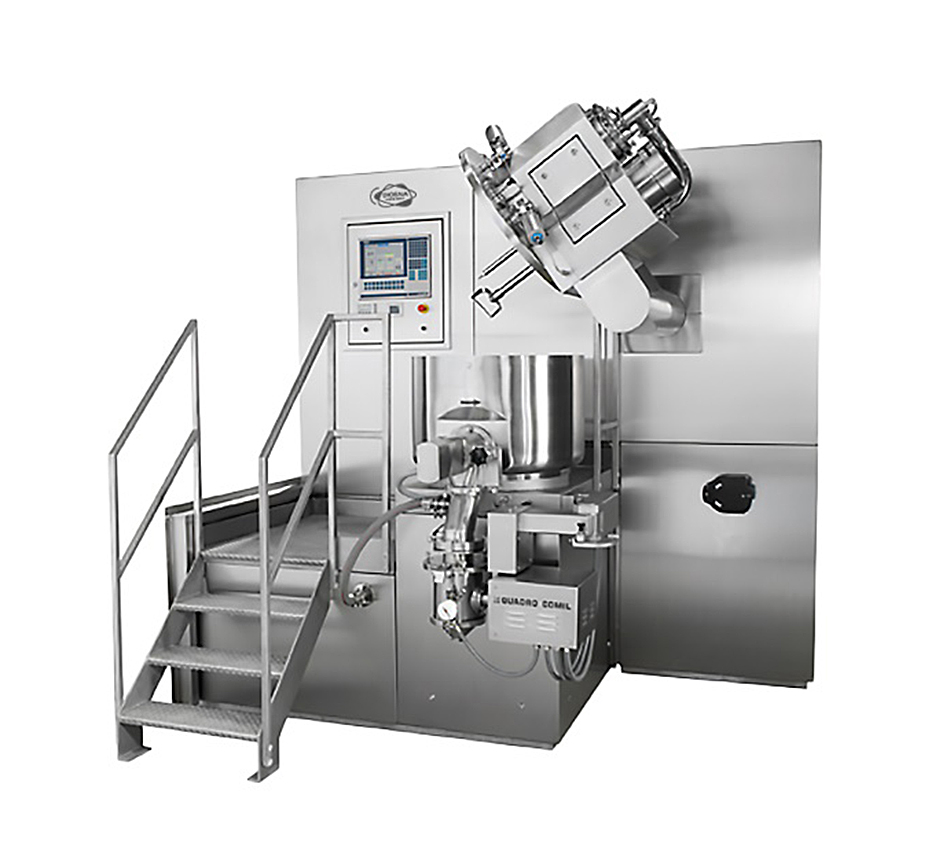

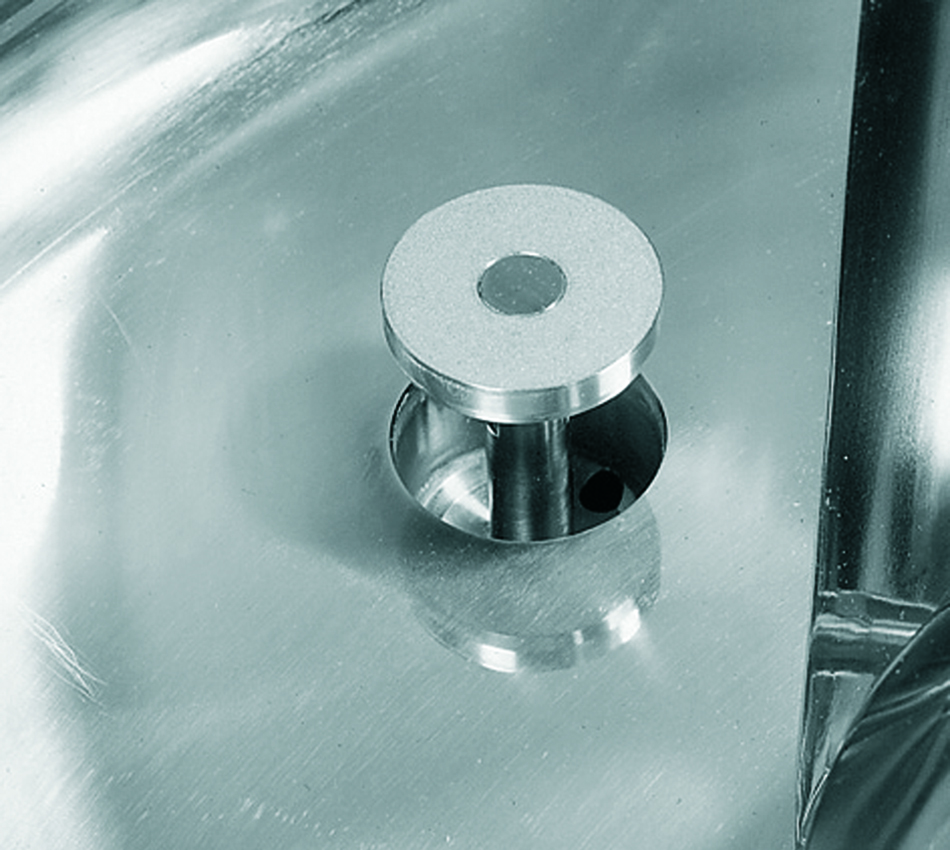

The Single-Pot processor has a cylindrical mixing bowl with two heating zones and double jacketed. The mixing and drying of components is made a thorough and uncomplicated affair by two features: firstly, the mixing tool with wall scraper for drying and, secondly, the automatically operated hinged lid, which can be heated to prevent condensation. In addition, the single-pot processor is equipped with drag-gas floor nozzles and a vertical chopper. The system is controlled fully automatically via an industrial PC. In order to be able to observe the running processes, a sight glass can be used. This gives you a precise overview of the processes in the processor at all times and enables you to make adjustments to the process promptly. Cleaning is carried out using a CIP/WIP process and is characterised by a high level of cleanliness and quality. For this purpose, the unit has a walk-in and user-friendly machine frame. The included components include the optimally designed bowl and the powerful mixing and chopping tools.
| Dimension |
To follow
